Description

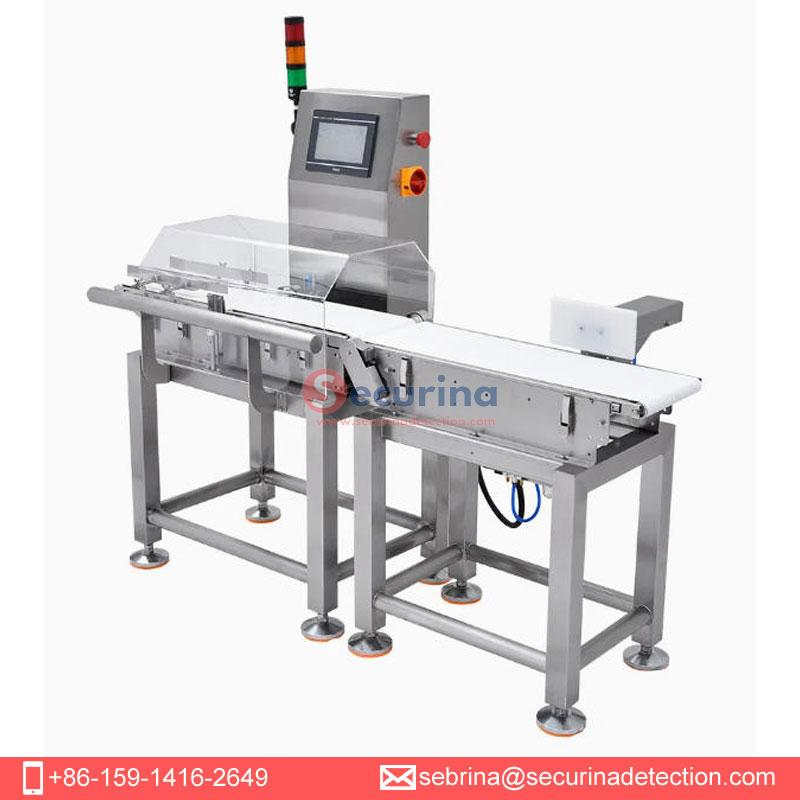

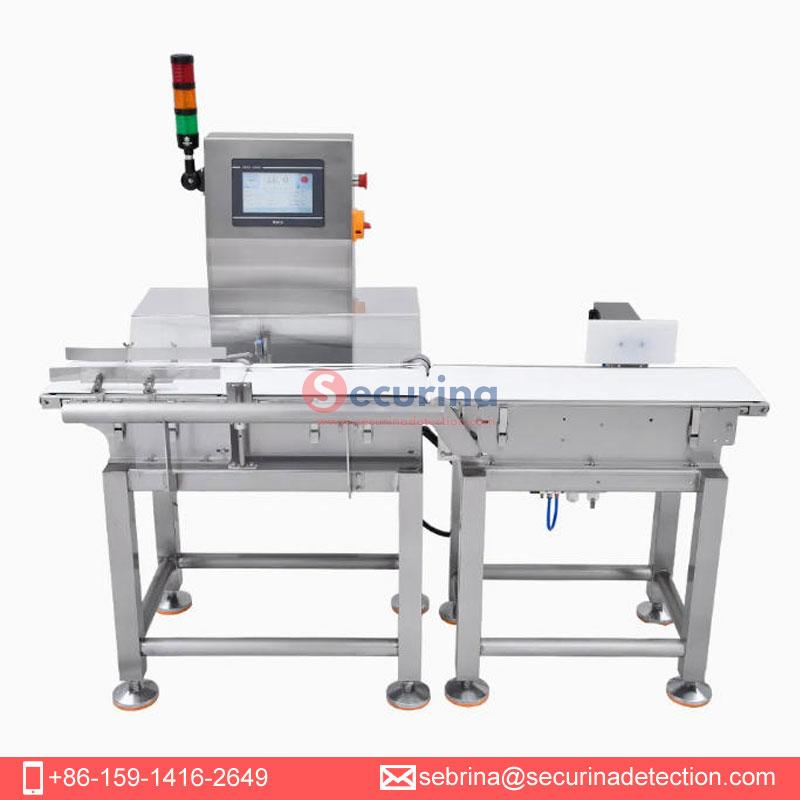

This dynamic conveyor checkweigher is an inline automatic weight inspection device specially customized for food production packaging lines. It performs real-time continuous weight detection of flowing packaged products, automatically separating underweight, overweight and qualified goods to realize full-process quality control.
Adopting SUS304 all-stainless steel hygienic structure, high-precision weighing sensor and intelligent touch screen control system, the machine complies with global food safety standards (FDA, CE, RoHS). It can be seamlessly connected with filling, packaging, metal detector and cartoning equipment, widely applied in coffee, snack, frozen food, dairy, seasoning and other food processing factories.
2. Core Advantages & Key Features
-
Food-Grade Hygienic ConstructionWhole machine frame, bracket and contact parts adopt SUS304 stainless steel; conveyor belt meets FDA food contact standard, waterproof and easy to clean, resistant to corrosion from water, oil and food residue. IP65 waterproof control cabinet optional for wet workshop environment.
-
High Precision & Stable Weighing SensorImported high-sensitivity load cell, anti-vibration design, stable detection accuracy even under continuous high-speed operation; infrared photoelectric sensor triggers weighing to avoid empty weighing errors.
-

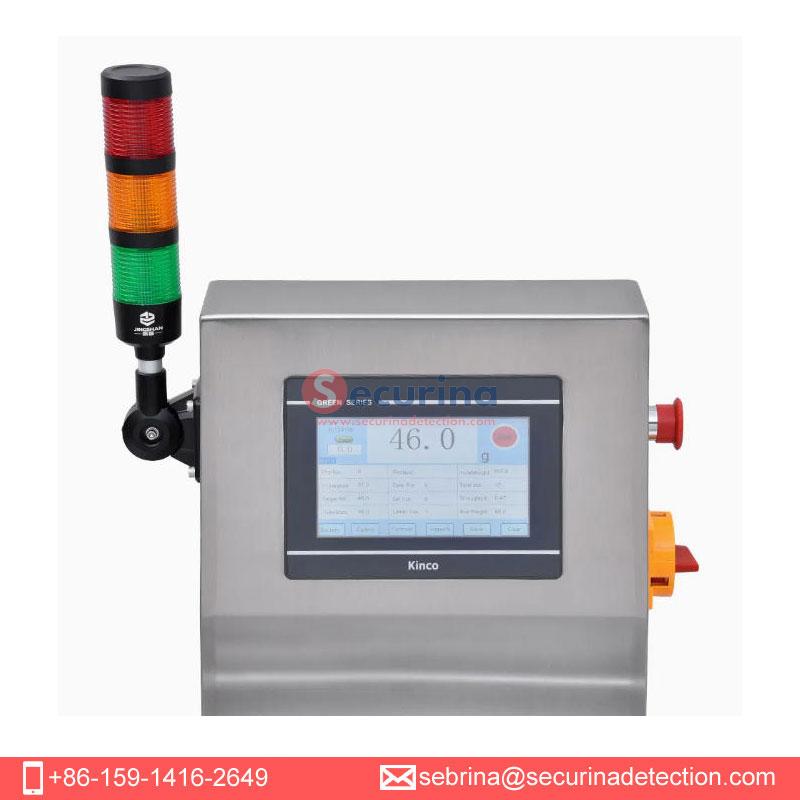

Intelligent Touch Screen Operation SystemOptional 7-inch / 10-inch colorful touch screen with multi-language support (English, Spanish, French, etc.). Store up to 100 groups of product parameter recipes, one-click switching for different packaging specifications. Real-time display of qualified / underweight / overweight product quantity statistics.
-
Complete Data Recording & Export FunctionAutomatically save production weight data, reject records and batch reports; support USB flash drive data export, convenient for factory quality traceability and compliance audit.
-
Adjustable Production Speed & Modular StructureConveyor speed stepless adjustable to match different production line rates; modular split design, easy disassembly, transport and maintenance, customized belt length and width available according to product size.
-
Automatic Rejection System (Multiple Options)Standard pneumatic pusher rejection; optional flap diversion, sweeping arm rejection. Automatic alarm with sound and light reminder when unqualified products appear, equipped with emergency stop button for safe operation.
-
Full Standard CertificationsFactory certified ISO9001; machine certified CE & RoHS; conveyor belt FDA food contact certification, fully compliant with EU, US and global food factory inspection requirements.
| Model No. | SA-120 | SA-150 | SA-200 | SA-300 | SA-400 | SA-500 | SA-600 |
|---|---|---|---|---|---|---|---|
| Single Product Weighing Range | ≤100g | ≤200g | ≤1000g | ≤3000g | ≤20kg | ≤40kg | ≤40kg |
| Weighing Accuracy | ±0.2~±0.5g | ±0.2~±0.5g | ±0.3~±1g | ±0.5~±3g | ±1~±5g | ±2~±8g | ±3~±10g |
| Conveyor Speed | 0.1–1.5 m/min (stepless adjustable) | ||||||
| Touch Screen Size | 7 inch (Standard) / 10 inch (Optional) | ||||||
| Recipe Storage Capacity | Max 100 sets | ||||||
| Rejection Mode | Standard Pneumatic Pusher; Optional Flap / Sweep Arm | ||||||
| Machine Material | SUS304 Stainless Steel Frame + FDA PU Conveyor Belt | ||||||
| Power Supply | 220V/110V AC, 50/60Hz | ||||||
| Protection Grade | IP54 Standard, IP65 Optional Control Box | ||||||
| External Interface | USB, RS232, Ethernet (Optional) | ||||||
| Working Environment | Temperature 0–40°C, Humidity ≤85% non-condensing | ||||||
| Overall Dimension | Customized based on product weight & packaging size | ||||||
| Warranty Period | 1 year whole machine, lifetime technical support |
4. Working Principle
- Packaged food products flow into the weighing conveyor through front production line;
- Infrared sensor detects incoming goods and triggers the weighing module;
- High-precision sensor captures real-time product weight and transmits data to touch screen controller;
-
System compares actual weight with preset upper/lower weight limit values:
- Weight within tolerance: product passes normally to next process;
- Weight lighter / heavier than set range: rejection device automatically pushes out unqualified goods, with sound-light alarm notification;
- All weighing and rejection data are automatically stored for later export and quality analysis.
5. Wide Application Industries
- Coffee Industry: Packaged coffee beans, ground coffee, coffee capsule weight inspection
- Snack & Confectionery: Potato chips, biscuits, candy, nut small bag weight checking
- Frozen Food: Frozen dumplings, steak, quick-frozen prepared meals
- Dairy & Beverage: Milk powder cans, yogurt boxes, beverage bottles
- Seasoning & Condiment: Sauce packets, spice bags, edible oil bottles
- Pet Food: Small bag and large bag pet feed weight detection
- Pharmaceutical & Cosmetic: Small medicine boxes, cream cosmetic packaging
6. Product Standard Configuration
- SUS304 stainless steel main machine frame
- High-precision weighing sensor
- 7-inch color touch screen control panel
- FDA food-grade PU conveyor belt
- Infrared detection sensor set
- Pneumatic automatic pusher rejection mechanism
-
