Securina-SA401 Human Presence, Movement & Heartbeat Detection System (MDS)

Home Products Other Security Equipment Human Presence Detection System (HPDS) Securina-SA401 Human Presence, Movement
Securina-SA401 Human Presence, Movement & Heartbeat Detection System (MDS)Securina-SA401 Human Presence, Movement & Heartbeat Detection System (MDS)Securina-SA401 Human Presence, Movement & Heartbeat Detection System (MDS)Securina-SA401 Human Presence, Movement & Heartbeat Detection System (MDS)

Securina-SA401 Human Presence, Movement & Heartbeat Detection System (MDS)

  • Product Item:SA401
  • Type: Desktop
  • Display: 23.6inch Monitor
  • Wireless sensor terminal
  • Touch Screen with Wireless keyboards
  • Category:Human Presence Detection System (HPDS)
  • Inquiry Send Email

    Description

    “Human smuggling, illegal border crossings, security of high value facilities and other similar applications represent a growing challenge across the world.


    No matter how secure the premises are, there is one risky area where escape attempts could succeed: the service entrance for lorries and cars! Normally, every vehicle that enters or leaves has to be checked for the presence of escapees by the security guard.

    This can take an enormous amount of time and effort

    •     OPENING ALL BOXES

    •     INSPECTING EVERY NOOK AND CRANNY

    •     SEARCHING ALL PALLET CARRIERS

    It’s not unusual for these inspections to take up to half an hour per car. And even after a thorough check-up, escapees might still go undetected.

    The human presence detection system is a system developed for vehicle inspection, public security checkpoints and other high-security facilities to help checking vehicles. Through the "microchip sensing terminal" adsorbed on the vehicle under inspection, the subtle tremors (such as heartbeat, breathing, pulse, body movement, etc.) caused by vital signs in the vehicle are collected, and the system algorithm is used to intelligently analyze it to determine whether there are hidden life forms in the vehicle, which greatly improves the work efficiency of police in preventing escape and smuggling in vehicle safety inspection.

    Securina latest research and development of [Wireless Intelligent Movenment Detection Human Presence Detector System], each detection module is independent, using wireless signal transmission technology, long effective distance, no need for physical connection, no longer troubled by the cumbersome operation process in the previous inspection work (unwinding, control, placement), reducing the work burden of cadres and police.


    Securina Heartbeat monitors sense the delicate vibrations caused by the human heartbeat, in order to detect unauthorized persons that may be hiding inside containers or vehicles. These systems can be installed to protect geographic borders, border crossing points, seaports and high-value entryways in facilities such as prisons.

    Securina heartbeat detector, the movement detection system(MDS) is a reliable solution that can be employed under a wide variety of environmental conditions. Accurate results can be relied upon in conditions that are hot, cold, wet, dry or dusty.

    Securina supplies a one-of-a-kind Human Presence Detection System (HPDS) that detects humans hiding in vehicles or shipping containers loaded on vehicles.

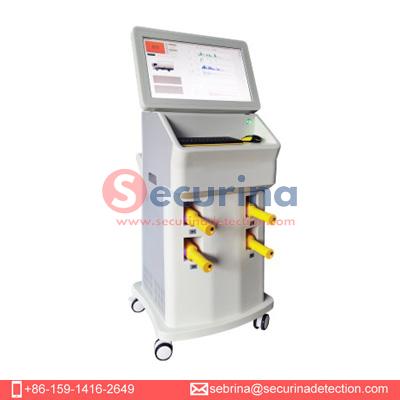

    SA401 human presence movement detector includes a computer, a digital control desk, four wireless vehicle sensor terminals and one ground environment sensor terminal.

    The magnetic vehicle sensors terminal, when placed on a vehicle or a container, determine whether a human is inside without the time-consuming and expensive task of unloading and inspecting the entire vehicle or container and all of the contents. The ground sensors mitigate any nearby environmental vibrations for increased accuracy. The sensors, similar to those used to measure earthquakes, measure the small movement or vibrations created by the heartbeat pumping blood moving through the human body (ballistocardiogram). These vibrations are transmitted to a vehicle’s frame and suspension system.

    The magnetic vehicle sensors, when placed on a vehicle or a container, determine whether a human is inside without the time-consuming and expensive task of unloading and inspecting the entire vehicle or container. The ground sensors mitigate any nearby environmental vibrations for increased accuracy. The sensors, similar to those used to measure earthquakes, measure the small movements or vibrations created by the heartbeat pumping blood through the human body. These vibrations are transmitted to a vehicle’s frame and suspension system.

    Patented MDS software analyzes these vibrations in real time and determines quickly if an individual is present or not and alerts the operator if further search is required.

    Advantages Of Securina Human Presence Detection Systems(HPDS):

    Reliability — Accurate results in a variety of environmental conditions, including dry, dusty, wet and hot or cold environments

    Speed — Fast processing for maximum efficiency

    Accuracy — Lower false alarm rates than any other available product

    Safety — No risk to the operator or detected persons during operation

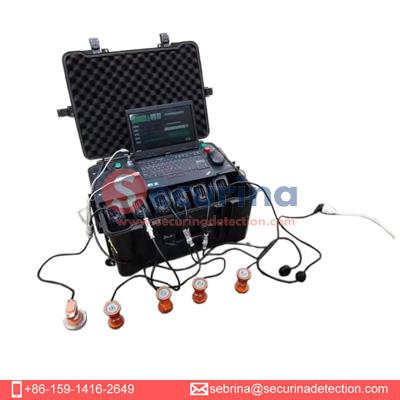

    Unmatched flexibility — Portable and Desktop versions meet your environmental or operational requirements.

    Economy — Far less capital-intensive than dedicated vehicle/cargo X-ray machines

    Light, compact sensors — Twice the holding power of previous sensors

    Wireless sensor — Anti-loss alarm

    Superior data transfer —Integrated charging compartment and security checking function together

    More details, welcome send inquiry to info@securinadetection.com
