How to produce a walk through metal detector?As we know that walkthrough metal detector working for detecting ferrous and non-ferrous metals. Major detecting the threats like knife,gun and explosive. Are you curious that how to produce archway metal detector?
Security metal detector gate with overall structure: consists of two door panels and a top main control box.
The door panel includes: detecting coil, infrared receiving board, infrared emitting board, data acquisition card embedded in the top of the door panel, LED light bar inserted at the edge, and power interface connected to the power adapter at the bottom.(Also accept customzied the power connected port on the top of panel) .
The top main control box contains a control box with a liquid crystal display and a main control board (data processing center), a buzzer/horn, and several cables.
Securina new generation metal detector door is simple in structure, easy to install and maintenance-free. The replacement of the parts is simple and the system automatically diagnoses the fault.
Below, the picture shows the flow of our door frame metal detector production:
1. First, brush a layer of graphite at the bottom of the door panel. Graphite has excellent electrical conductivity, and the addition of graphite enhances the electrical conductivity.
2. Cover a layer of high-density board and large detection coils around the layout.
3. The small detection coil consists of a PVC ring body and a copper wire coil. A detection coil needs to be wound up to 400 turns of copper wire.
4. The ordinary archway metal detector is glued to a door panel by 6 small detection coils or 8 small detection coils.

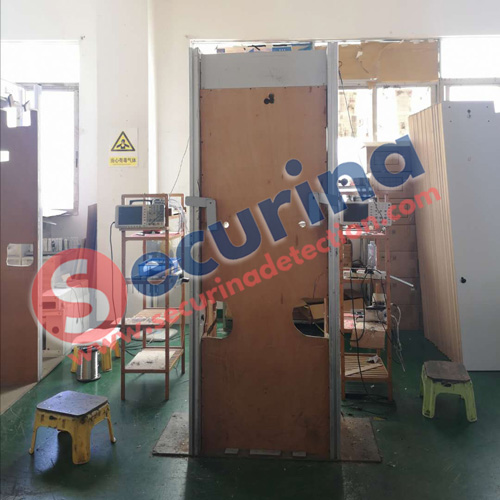

5. After all the coils are assembled on the door panel, move to the adjustment area, and use the oscilloscope to assemble the acquisition card to test the fluctuation value of the detection coil, and control all fluctuation values within the specified range. Therefore, we can appropriately add the compensation coil to meet the standard requirements.
6. Hand soldering main control board chip and electronic component soldering in soldering area
7. After the main control box is assembled, it is placed in the aging zone for the power-on analog test and the random alarm test for 168 hours without interruption. Ensure that the functions of each component are balanced and stable quality.
8. After the LED light bar is soldered to the lamp bead, it is also required to be placed in the aging zone for 168 hours of continuous operation to ensure the stable quality.
9. After the door panel detection sensitivity is adjusted, the LED light bar and the frame are assembled, waiting for packaging.
10. After the main control box is aged, it is assembled into the top main chassis and ready for packaging. The standard package features a multi-layer cardboard box with a cushioned HDPE board (high density polyethylene board) .
11. Long-distance transportation, the outer packaging adds a plywood frame, and the peripheral corners are fixed by the screws and the connecting buckle to prevent the violent transportation from causing the protection frame to fall off.
